Prevost Piping System compressed air network 100% aluminium
The 100% aluminium concept
The PREVOST PIPING SYSTEM pipes and fittings are 100% aluminium, compact, lightweight and professional strength.
They can be installed easily and quickly for immediate pressurisation.
The PREVOST PIPING SYSTEM range ensures:
- clean, high quality air at all times
- a sealed system
- an optimised flow rate

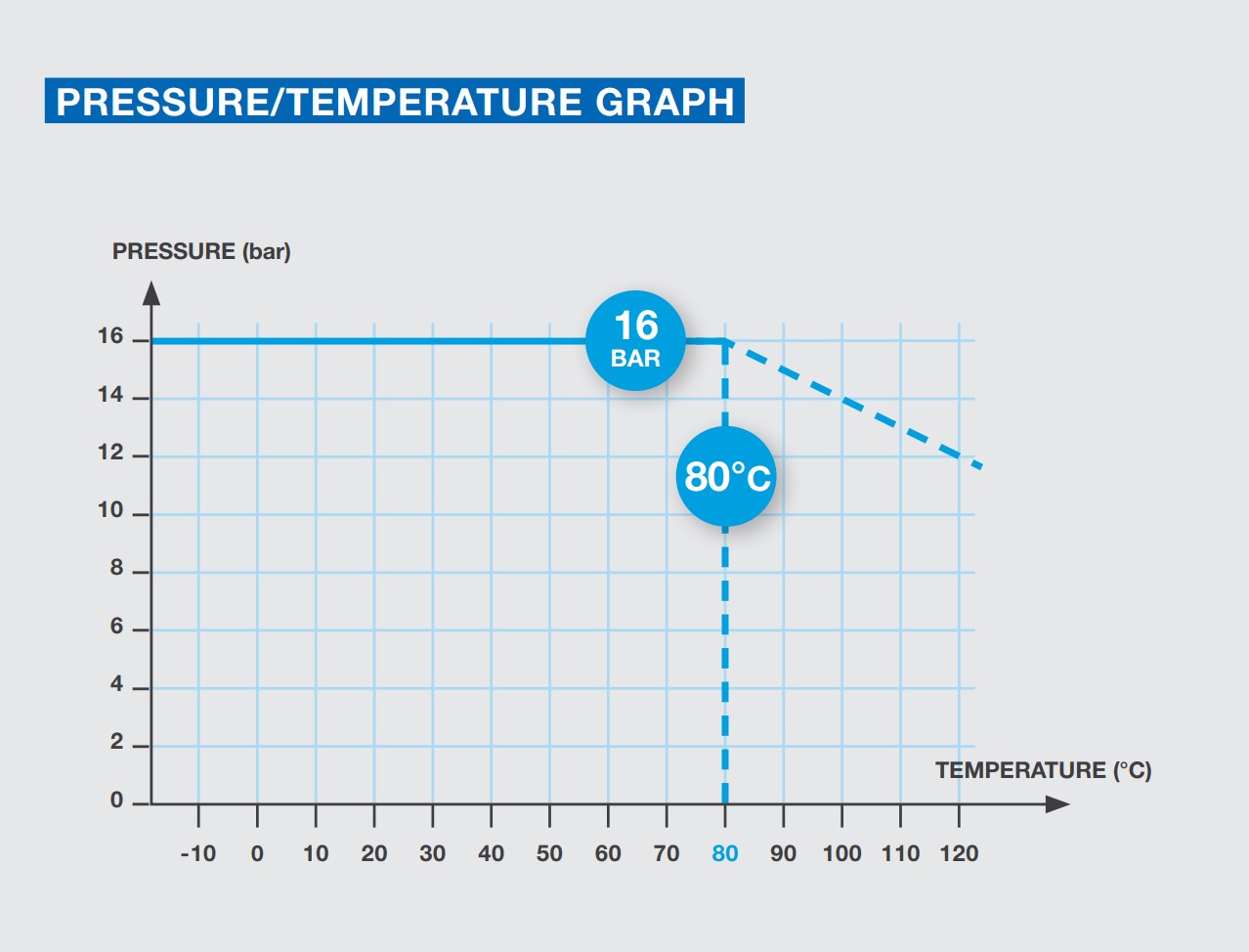

- an operating pressure range from - 0.98 bar to + 16 bar
- a temperature range from - 20°C to + 80°C
Workstations are well supplied, accessible and ergonomically designed. The facility is durable and can be easily upgraded.
Presentation of the PPS range in video
Benefits of a PREVOST PIPING SYSTEM
- Compact and lightweight
The 100% aluminium composition of the PPS range creates a system that is compact, lightweight and durable. - High tech, modern material
Aluminium alloy, combined with external electrostatic paint and internal treatments all protect the pipe against the oxidation and corrosion. - 100% customizable
The wide range of sizes and fittings allows the system for modular and scalable construction. - Easy and quick to assemble
Simply insert the pipe into the PPS fitting then tighten the nut. - Leak free with minimal pressure loss
The "PPS Grip Concept" creates a secure, leak free connection. The smooth internal surface generates a laminar flow, a low friction coefficient and a maximum flow diameter which are all factors to reduce pressure loss. - Compatible with compressor oils
Aluminium and viton seals are compatible with compressor lubricants. - Tough material
Aluminium guarantees long term performance: mechanical strength, pressure resistance and shocks absorbent
The PREVOST PIPING SYSTEM range

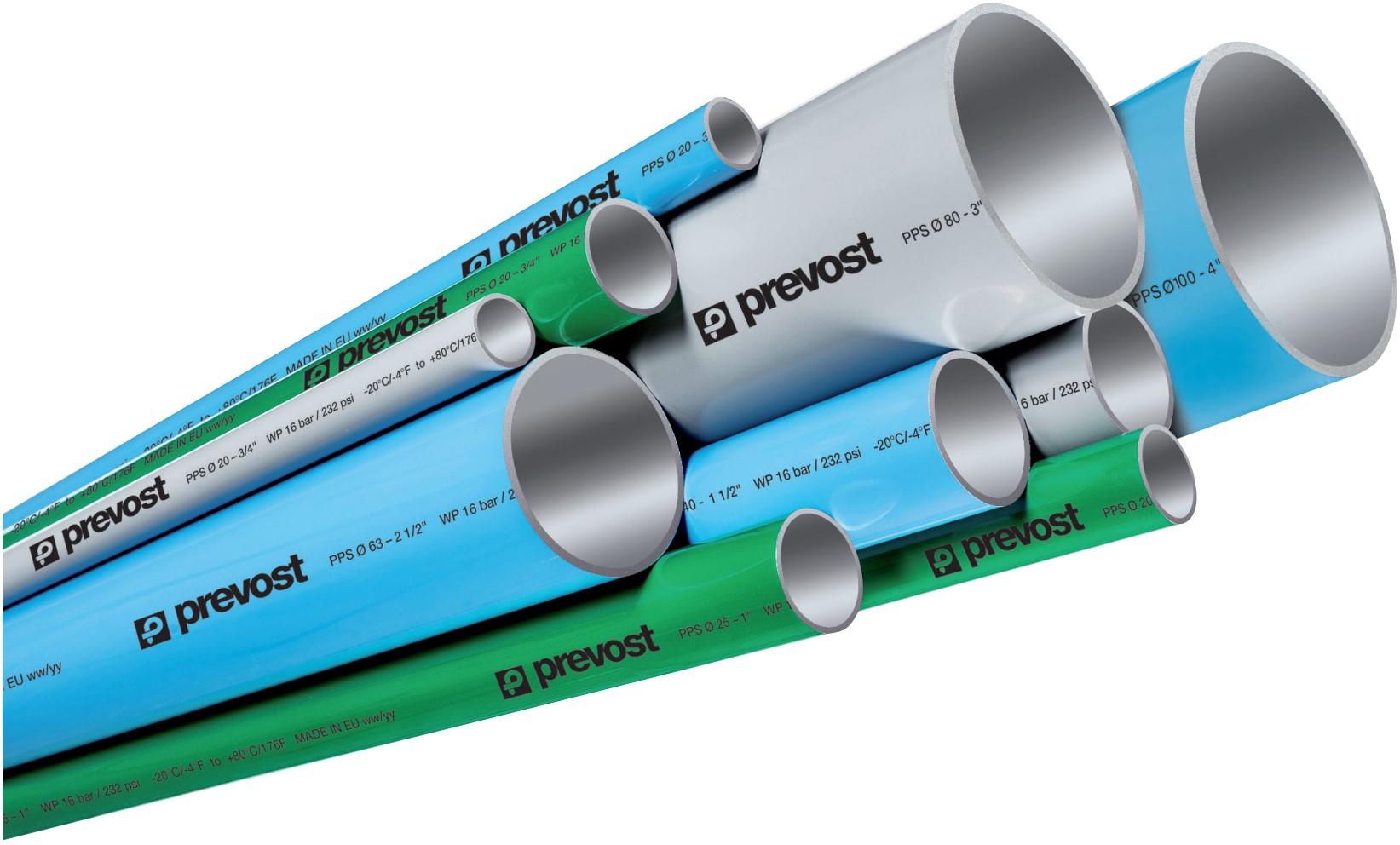

100% aluminium pipes
- Stainless steel
- Minimal pressure loss
laminar flow from smooth internal surface - UV and heat resistant
low coefficient of expansion - ISO marking and colour
all diameters are available for RAL 5012 (blue) and RAL 7001 (grey) pipes. 20, 25 and 50 mm diameters are also available for RAL 6029 (green). - No fire hazard
system does not require a fire permit - Simple tools
easy to cut and chamfer for simplified installation and maintenance - Lightweight
- Cost-effective
TECHNICAL CHARACTERISTICS OF PPS PIPE
Material:
Extruded aluminium.
Alloy EN AW 6060 T6 UNI-EN 573-3
Alloy EN AW 6063 T6
Treatment:
Internal/external treatment (RoHS compliant)
Coating:
Electrostatic paint
Extrusion quality:
Calibrated without welding
Compatible fluids:
Compressed air, vacuum, neutral gases
Pipe lengths:
3 or 5.5 metres
Density:
2,7 kg/dm³
Pipe outside diameter:

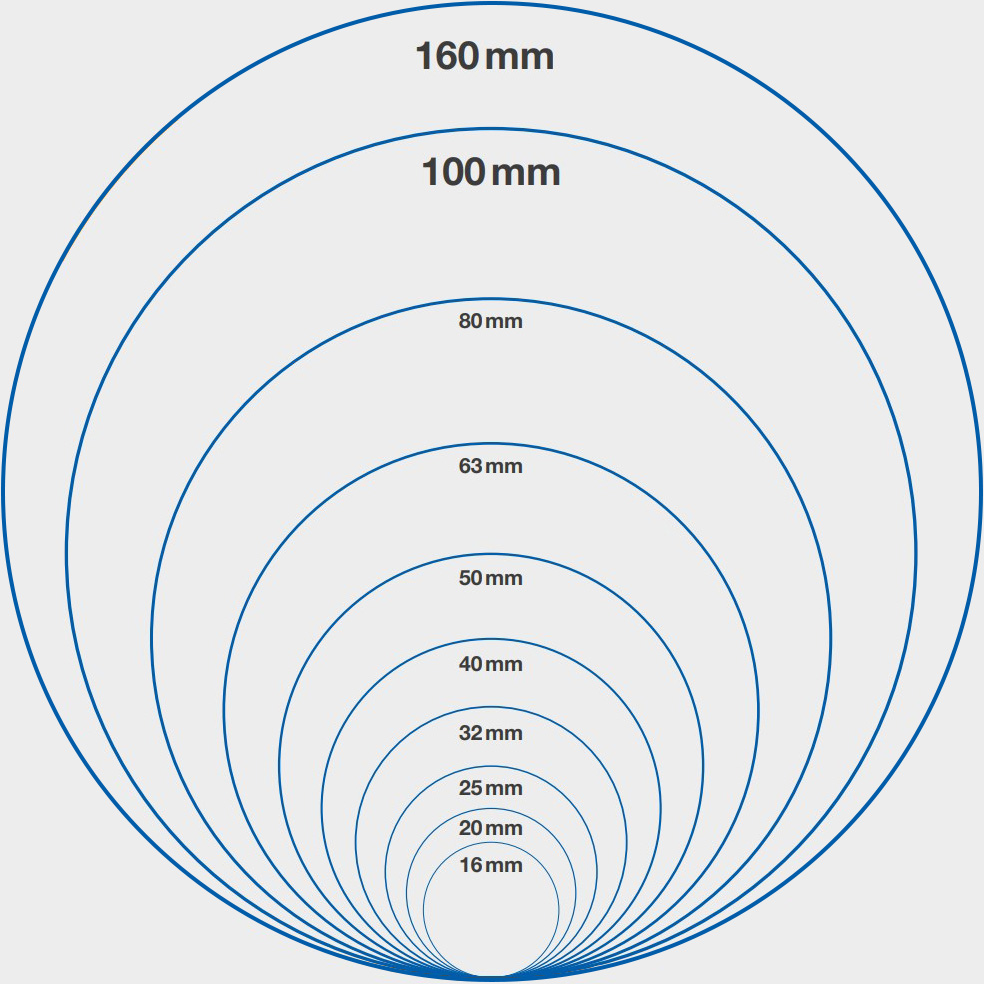

Ø 16, 20, 25, 32, 40, 50, 63, 80, 100, 160 mm

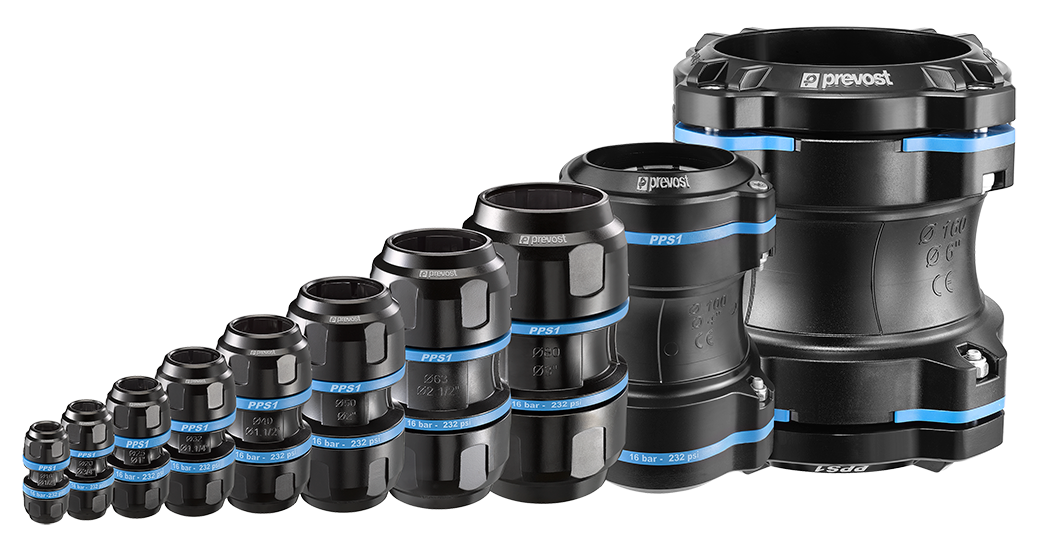

100% aluminium fittings
-
IDENTIFICATION

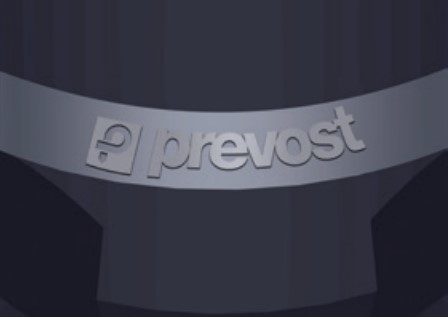

The Prevost logo is engraved on each fitting
-

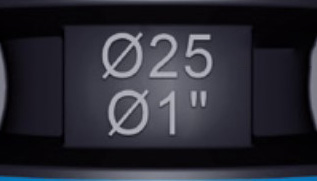

DIAMETER
Pipe external diameter in mm and inches
-

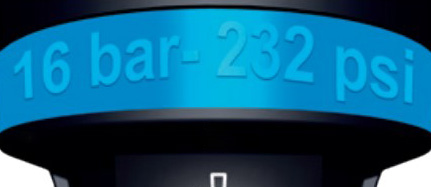

PRESSURE
Maximum service pressure
(bar/psi) -
MARKER
To indicate that the pipe is correctly positioned in the fitting
-
LEAKTIGHT
The seal has been specifically designed for this application. It comprises two Teflon-coated lobes to optimise leaktight.
INTERNAL PARTS
Internal parts cannot be detached from the body after assembly.
-
TRACEABILITY
TECHNICAL SPECIFICATIONS OF FITTINGS
Body and nut:
100% aluminium EN AB 46100
PPS Grip Concept :
stainless ring
Tapping flange
to remove condensates
The PPS Grip Concept
The pipe is locked into the fitting with a stainless steel ring of teeth which penetrates the aluminium.
The double-lobed, lubricated seal guarantees a secure connection and provides optimum results even in the harshest working conditions.
CC CONCEPT: COMPACT CONNECTOR CONCEPT
Compact solution for directly connecting two fittings, optimising space and creating installations suitable for "compressor" rooms.
- Compact
Save space in your installation by optimising space. - Quick installation
The CC Concept allows two fittings to be connected directly. - Modular
Create specific installations adapted to all "compressor rooms".
Optimise your workstation with the PPS SQ compressed air network
The PPS SQ line transforms individual workstations into an air source. Design ergonomic, compact and aesthetic assembly bench to increase efficiency and productivity.
The PPS SQ line integrates seamlessly into a new or existing Prevost Piping System network by connecting directly into drops at:
- Automatic machine lines
- Individual workstations/workbench
- Pneumatic control cabinets
- Factory assembly
- Production lines
2024 range extension
The PPS range gets bigger!
Prevost has extended its range of compressed air pipework Prevost Piping System by adding 160mm diameter to its size offering.
The PPS range, manufactured in Europe, offers the guarantee of a leak-free network, that is relatively simple to assemble and consists of lightweight, impact-resistant aluminium pipe and fittings. It is now available for even the largest installations!
The compressed air system in practice
How to install your Prevost Piping System compressed air network?
How to attach your compressed air network?
Video content is available to help you install your compressed air network PREVOST PIPING SYSTEM.
Certifications by industry application
Industry standards
ISO 9001*
Prevost’s technology is recognized by the TÜV.
* Only valid for products manufactured in Italy
ASME QPS-1
Supplier quality guarantee
Worldwide exclusivity.
Pressurized equipment
PED-2014/68/EU
TÜV certifies Prevost products meet the requirements of the Pressure Equipment Directive PED 2014/68/EU.
ASME B31.1
Prevost PPS products comply with ASME B31.1.
ASME B31.3
Prevost PPS products comply with ASME B31.3.
CRN
Prevost PPS products meet Canadian pressure equipment requirements and are CRN certified.
Safety and protection
UL 723 - ASTM E84
The PPS compressed air system line complies with American standard UL 723 & ASTM E84 for fire behavior.
EN 13501-1
The PPS compressed air system line complies with European standard EN 13501-1 for fire behavior.
ATEX-2014/34/UE
This European directive applies to all electrical and non-electrical equipment used in explosive, gaseous or dusty atmospheres.
UV RESISTANT
The 100% aluminium PPS line has excellent ultra violet ray resistance.
Fluid quality
Oil Free
Prevost products will not contaminate the conveyed fluid with grease or oil particles.
Silicon free
Prevost guarantees that no silicone-based agents have been used in the manufacturing of PPS products.
NSF H1
The Prevost PPS AL lubricant meets the requirements of the most stringent applications: food, chemical, pharmaceutical, cosmetic...
ISO 8573-1 cl. 0.0.0
The products in the PPS range ensures the fluid being transported is not contaminated by solid particles, water, moisture or oil.
QUALICOAT
The outer surface of PPS aluminum pipes complies with Qualicoat certification.
Environmental
REACH
Prevost closely monitors the raw materials used to produce its line of PPS products.
RoHS
Prevost closely monitors the raw materials used to produce its line of PPS products.
Recyclable
The PPS line (pipes and fittings) are 100% aluminum and recyclable.
